HS600D, Pro-Level Aerials, Without the Price Tag

HS600D

HS600D, Pro-Level Aerials, Without the Price Tag SPECS

DRONE

Model: HS600D

Weight: 603g / 21.3oz

Max Flight Time: 40 minutes (per battery, in a windless environment)

Max Flight Height: 394ft / 120m

Max Takeoff Altitude: 9842ft / 3000m

Max Wind Speed Resistance: 7.9m/s

Operating Temperature Range: 32° to 104°F (0° to 40°C)

Size: 202 × 95 × 83 mm (Folded)

375 × 258 × 83 mm (Unfolded)

DRONE BATTERY

Capacity: 3500mAh

Voltage: 11.1V

Battery Type: Lithium-ion Polymer Battery

Rated Power: 38.85Wh

Charging Temperature Range: 41° to 104°F

Charging Time: about 2 hours

USB CHARGING CABLE

Input: 5V/3A

Rated Power: ≤15W

GIMBAL

Stabilization: 3-axis (tilt, roll, pan)

Controllable Range: about -80° to 0°

Mechanical Range: Tilt: -100° to +70°, Roll: -35° to +35°, Pan: -15° to +15°

CAMERA

Operating Frequency: 5745~5825MHz

Max Transmission Distance: 19685ft / 6000m (outdoor and unobstructed)

Photo Resolution: 8000 × 6000P (stored in TF card)

3840 × 2160P (stored on cellphone)

Video Resolution: 3840 × 2160P@30fps (stored in TF card)

1280 × 720P@30fps (stored on cellphone)

Photo Formats: JPEG

Video Formats: MP4

Supported TF Cards: Class 10 or above, up to 128 GB

Supported File Systems: FAT32

TRANSMITTER

Operating Frequency: 5745–5825MHz

Max Flight Distance: 19685ft / 6000m (outdoor and unobstructed)

Charging Time: about 2 hours

Usage Time: about 2.5 hours

Battery Type: 7.4V 1100mAh Lithium-ion Battery

Operating Temperature Range: 32° to 104°F

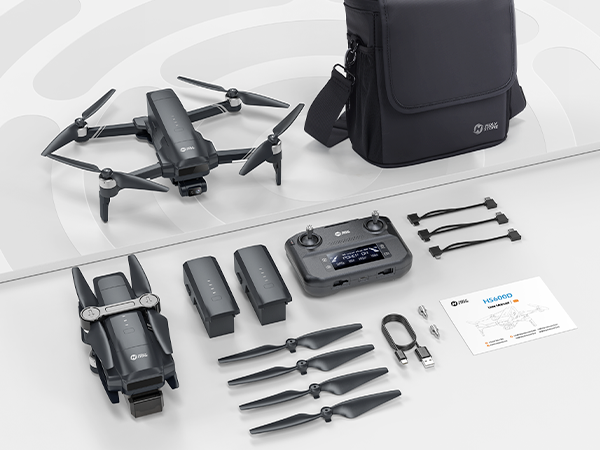

HS600D, Pro-Level Aerials, Without the Price Tag IN THE BOX

Dual Battery Version


HS600D Drone × 1 (with built-in RID)

RC × 1

Drone Battery × 2

Spare Propellers × 4

Camera Cover × 1

Charging Cable × 1

Type-C Cable × 3

Portable Case × 1

User Manual × 1

HS600D, Pro-Level Aerials, Without the Price Tag DOWNLOAD
HS600D, Pro-Level Aerials, Without the Price Tag FAQ
Troubleshooting
  • Why can't the gimbal be adjusted?

    - The gimbal protection is activated because the gimbal cover was not removed.
                               → Ensure the gimbal cover is removed before powering on.

    - The drone is not placed on a level surface.
                               → Place the drone on a level surface before turning it on and wait for the gimbal to complete its self-check.

    - The drone is in compass calibration mode.
                               → The gimbal does not function during compass calibration. After calibration, place the drone on a level surface and wait for the gimbal to stabilize and re-center.

    - The drone is placed on uneven ground (e.g., grass or sand).
                               → Position the drone levelly on a landing pad or move to a flat surface. Make sure there is space beneath the gimbal and no obstacles that could affect stabilization.

  • Why is the drone flying unstably or showing abnormal posture?

    - GPS signal instability due to flying near buildings or obstructions.
                               → Operate the drone in open areas free from obstructions.

    - Compass interference.
                               → 1. Manually land the drone and recalibrate the compass.
                               → 2. Try flying in a different location away from buildings, power lines, and towers.

    - Propellers are deformed or damaged.
                               → Replace with new propellers.

  • Why is there video lag or limited transmission range?

    - Signal interference from buildings, towers, or power lines.
                               → Fly in open areas away from potential obstructions to reduce interference.

    - Transmitter and mobile device are not properly aligned with the drone.
                               → Ensure they are facing the drone’s direction to improve signal strength.

    - Aggressive joystick movement during flight.
                               → Use slow and steady joystick controls to maintain stable transmission.

    - Phone is running background apps or having performance issues.
                               → Close unused apps to optimize device performance during flight.
